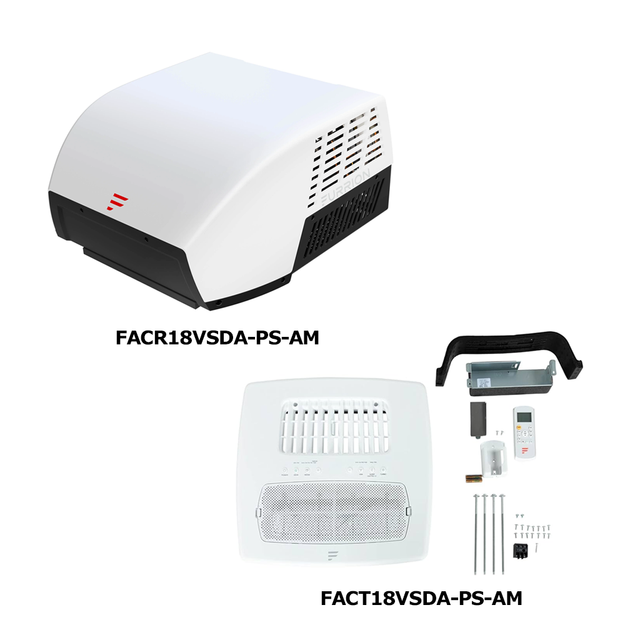

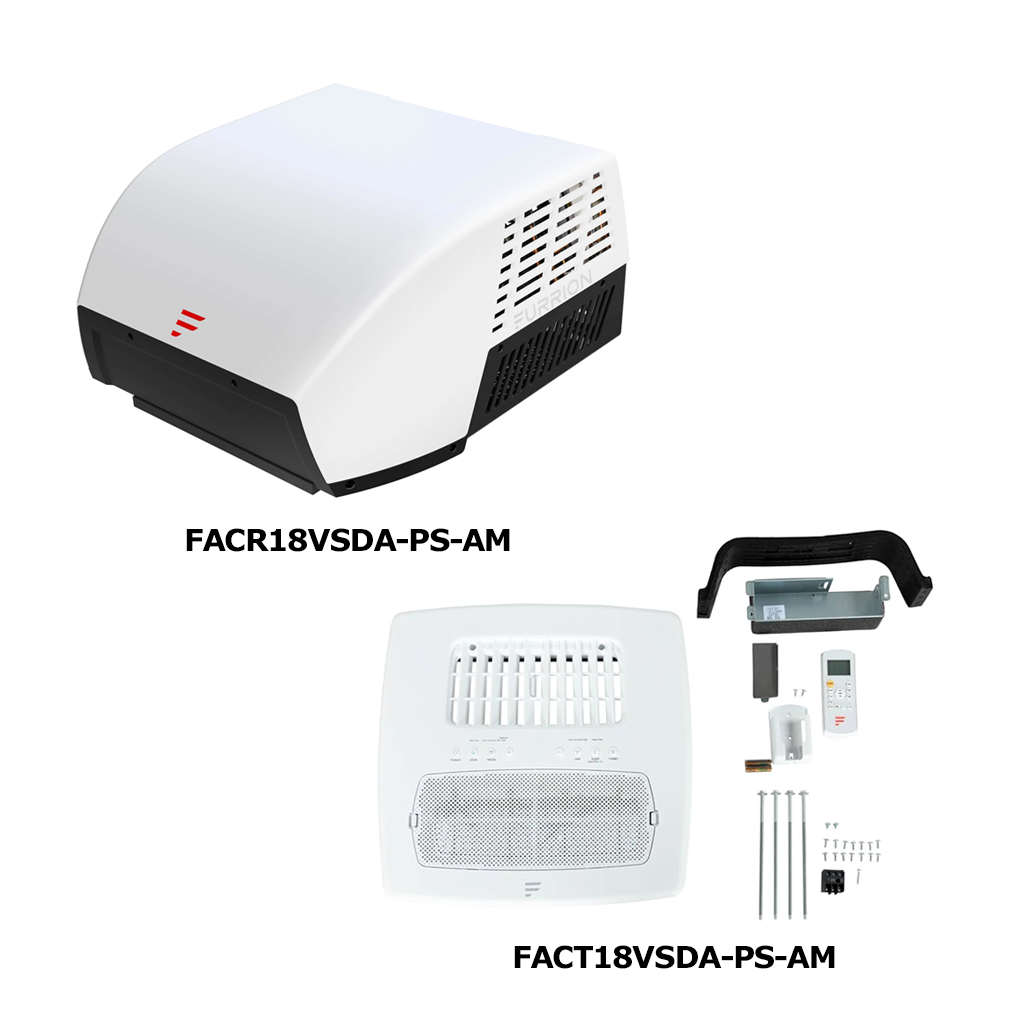

Furrion Chill Cube Bundle - FACR18VSDA-PS-AM - FACT18VSDA-PS-AM

Furrion Chill Cube 18,000 BTU Ducted RV Rooftop Air Conditioner – White – FACR18VSDA-PS-AM

The Furrion Chill Cube RV Rooftop Air Conditioner delivers high-capacity, ducted cooling performance for RVs and mobile homes. With an 18,000 BTU rating, this unit is engineered for efficient air circulation using a dual-fan design that enhances airflow and helps maintain a comfortable interior temperature. Designed for durability, it features a lightweight, aerodynamic profile and a UV-resistant white finish. Ideal for 14" x 14" standard vent openings, the Chill Cube installs easily and offers reliable performance for extended travel in a variety of climates.

Key Features:

• 18,000 BTU Cooling Capacity: Provides powerful ducted cooling for large RV interiors.
• Dual-Fan Design: Enhances airflow and reduces heat buildup for improved cooling efficiency.
• Aerodynamic Profile: Lightweight and sleek design helps reduce drag and integrates well with RV exteriors.
• Durable Construction: Weather-resistant components including a UV-resistant finish and sealed drip pan.
• Energy Efficient: Operates at 120V with a 14A draw, offering high output with moderate power usage.
• Quick Installation: Fits standard 14" x 14" roof openings; estimated install time is approximately 1.5 hours.
• Reliable Operation: Built for performance in a variety of travel environments.
• Warranty: Backed by a 2-year limited manufacturer's warranty.

Specifications:

• Mounting Size: 14" x 14" standard RV vent opening
• Cooling Capacity: 18,000 BTU
• Voltage: 120V AC
• Amperage: 14A
• System Type: Ducted, single-zone
• Color: White
• Control Type: Wall thermostat (not included)
• Cooling Function: AC only
• Remote Control: Not included
• Condensate Pump: Not included
• Weight: 84 lbs
• Shipping Weight: 94 lbs
• Unit Height: 14.5"

Furrion Chill Cube Ducted Air Distribution Box with Remote – White
FACT18VSDA-PS-AM

Upgrade your RV’s climate control with the Furrion Chill Cube Ducted Air Distribution Box (ADB). Designed for RVs with a 3–6" roof thickness and standard 14" roof openings, this low-profile unit delivers quiet, efficient cooling when paired with a Furrion Chill Cube 18K air conditioner (R32 system only). It features a sleek onboard control panel and a remote with “Follow Me” thermostat technology, allowing precise comfort wherever you are in the cabin. Four cooling modes—including Turbo, Eco, and Gear—let you balance performance and power use with ease.

Key Features:

• Compatible with R32-based Furrion Chill Cube 18K rooftop AC systems
• Low-profile design maximizes interior ceiling space
• Four operating modes: Auto, Eco, Gear (50% or 75% limit), and Turbo
• Remote control with Follow Me sensor for accurate room-based cooling
• Detachable air filter for easy cleaning and maintenance
• Quiet 60 dB operation with two-way air outlet for even air distribution
• Fits RV roofs 3–6" thick with 14" x 14" ceiling openings
• Simple bolt-on installation for ducted systems
• Furrion Ref #: FACT18VSDA-PS-AM / 2024040312

Specifications:

• Voltage: 115V AC
• Sound Pressure Level: 60 dB
• Air Outlet: Two-way
• Control Options: Onboard panel & remote
• Compatibility: R32 refrigerant systems only
• Roof Opening: 14" x 14"
• Roof Thickness: 3" to 6"

Dimensions: 20in L x 19.75in W x 18.50in H

Weight: 9.40 lbs.

Important Compatibility Note: This air distribution box is only compatible with systems using R32 refrigerant. It is not interchangeable with R410A-based components. Always check your air conditioner's refrigerant type before installation.
