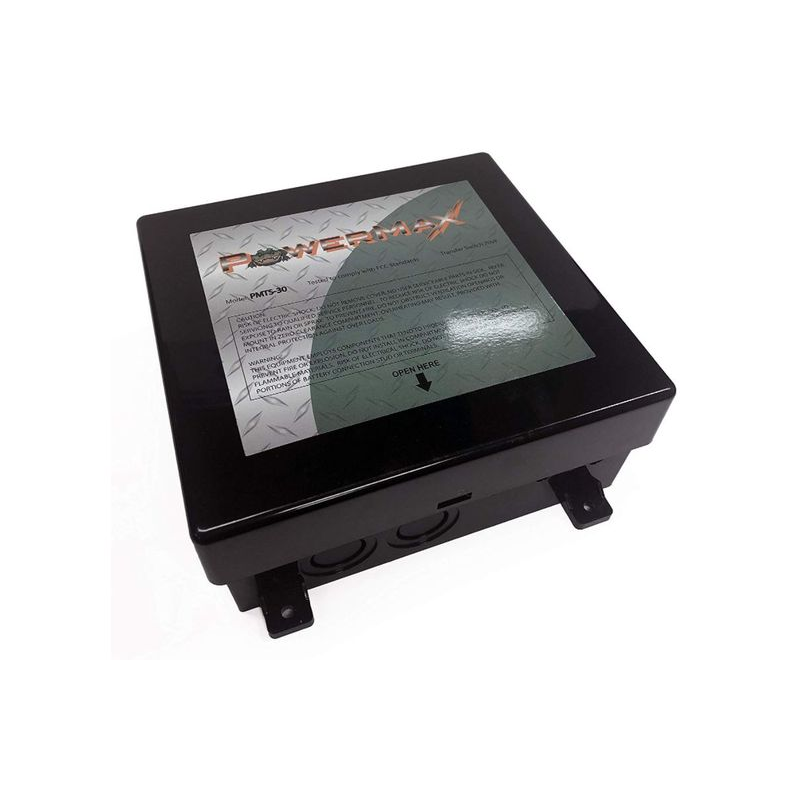

PowerMax PMTS-30 Automatic Transfer Switch – 30 Amp RV Power Management

The PowerMax PMTS-30 Automatic Transfer Switch is designed to deliver safe and reliable power management for RVs equipped with 30 Amp AC service. When connected to shore power, the PMTS-30 supplies electricity to all AC appliances. If you start your onboard generator, the switch will automatically transfer power after a 20–30 second delay, allowing generator voltage to stabilize before powering your RV’s circuits.

Equipped with heavy-duty relays and a time-delay circuit board, this compact switch ensures that only one power source is directed to your RV’s AC distribution panel at a time—protecting your electrical system from damage. The quick-change circuit board also makes maintenance simple, allowing easy replacement if needed.

Ideal for RV owners looking for a dependable and efficient power transfer solution, the PMTS-30 is lightweight, space-saving, and backed by a 2-year manufacturer warranty.

Key Features:

• Automatic Power Transfer – Seamlessly switches between shore power and generator power.
• 20–30 Second Safety Delay – Ensures generator voltage stabilizes before transfer.
• 30 Amp / 120 VAC Service – Perfect for RVs with 30 Amp electrical systems.
• Prevents Power Overlap – Stops two power sources from entering the AC panel simultaneously.
• Heavy-Duty Relays – Built for long-lasting, reliable performance.
• Quick-Change Circuit Board – Easily replaceable if a failure occurs.
• Compact Design – Saves space and simplifies installation.

Specifications:

• Brand: PowerMax
• Model: PMTS-30
• Type: Automatic Transfer Switch
• Input Voltage: 120 VAC, 60 Hz
• Input Current: 30 Amps
• Output Voltage: 120 VAC, 60 Hz
• Output Current: 30 Amps
• Dimensions: 4.00" L x 4.00" W x 4.00" H
• Net Weight: 1.8 lbs (unit only)
• Shipping Weight: 3.0 lbs
• UPC: 7044447863692
• Warranty: 2-Year Limited Manufacturer Warranty

Included in the Box:

• PowerMax PMTS-30 Automatic Transfer Switch
• Installation guide

Applications:

• Recreational Vehicles (RVs)
• Travel Trailers
• Motorhomes with 30 Amp service
